Yiyu CorporationHundred-grade and 10,000-grade purification projectsDesign and Installation
Project Name：Shanghai Yiyu Share Technology Co.
Project content：Hundred-grade and 10,000-grade purification projects
Industry Category：Medical Diagnostic Reagents
Shanghai Yiyu Share Technology Co. (Medtrum) is a high-end medical device company founded by a group of technologists, investment bankers, and marketing professionals who have returned to the United States and live there. Headquartered in Shanghai, China, the company has an R&D department and manufacturing facility in Shanghai. The company is dedicated to the development, manufacturing and sales of new implantable microelectronic medical device products. The company follows “ China R&D, global market (InChina, forGlobal) ” the layout of the model, products for global diabetic and cardiac patients. The company adheres to the concept of “innovation and breakthrough, comprehensive leadership” and is the first to launch a series of innovative products in the world.

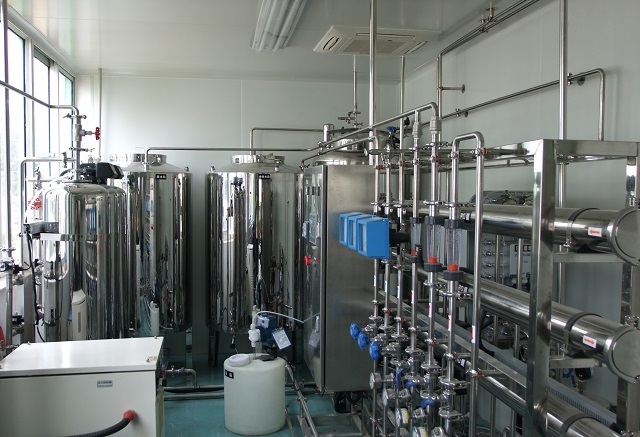

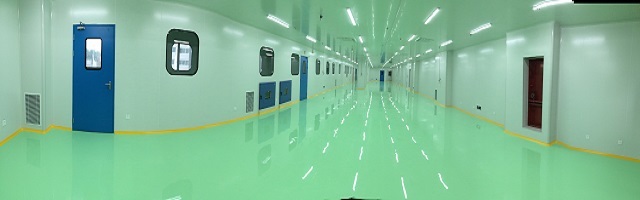

The workshop adopts air supply and return system, air conditioning adopts air-cooled heat pump unit plus electric heating, constant temperature and humidity control, and adopts Siemens intelligent control system.
■ Cleanroom clean room project completion acceptance of the commissioning of the preparatory work before
1, the clean room purification project commissioning organization preparation：
The commissioning team headed by the construction unit (owner) with the participation of design unit, construction unit and supervision unit personnel is established. The commissioning team leads the overall work of commissioning, the commissioning team coordinates the relationship between all parties, and the commissioning team provides various soft and hard conditions for the commissioning work.
2、Commissioning outline of clean room purification project preparation
Under the leadership and organization of the commissioning team, the commissioning outline is prepared. Commissioning outline is the guiding document of commissioning work. The content of the commissioning outline includes: organizational division of labor, material mobilization; commissioning project, commissioning method, commissioning instrument; commissioning procedure, commissioning progress, commissioning plan arrangement, etc. The preparation of the commissioning outline makes the commissioning personnel clear in mind, unified in understanding, consistent in pace and neat in action, so that the commissioning work is carried out smoothly.
3、The clean room construction site quality of the clean room will be inspected.
Under the leadership organization of the commissioning team, relevant leaders and technical personnel of construction unit, design unit, construction unit and supervision unit participated in the construction site and construction quality for a comprehensive meeting inspection. From the refrigeration station, heat exchange station, boiler room, substation and distribution station, air-conditioning machine room to the cooling, heating, power supply system, air-conditioning purification system and automatic control system. From the construction quality of equipment (freezers, boilers, pumps, cooling towers, air conditioners, etc.), fittings (valves, air outlets, mufflers, etc.), pipes and pipelines to insulation, equipment foundations, pipe supports and hangers, etc. will be fully inspected. To see whether the construction according to the map, check and design drawings do not match the place, to find the construction quality of unqualified items and check the reasons. And the construction, processing, installation and other quality issues one by one to fill out “ defect schedule ”, put forward rectification advice, the deadline (before the official commissioning) rectification completed.
4、Clean room purification project of the air conditioning equipment, air conditioning system cleaning：
① It is very necessary to carry out a comprehensive and thorough cleaning of the clean room before commissioning. The ground, wall, ceiling, doors and windows of the clean room should be carefully, comprehensively and thoroughly cleaned (it is better to ask professional cleaning company); the air conditioning equipment, air conditioning ducts (air supply duct, air return duct, new air duct), air conditioning accessories (cleaners, valves, air outlets, etc.) should be checked, leak detection and wipe test. Until the clean requirements are met.
②Install coarse and medium-effect filters for the first air blowing. On the basis of thorough cleaning, install the coarse and middle-effect filters in the air conditioner. Air-blowing of the whole purified air conditioning system, air-blowing time is 24~36 hours, so that the whole system can be initially purified.
③Installation of high efficiency filter. High efficiency filter can be installed after the system is air blown. Before the installation of high-efficiency filters, it is required to leak detection one by one, and plugging for those with leaks. Leak detection is carried out on the temporary leak detection table, and the dust source uses atmospheric dust. The high efficiency filters that are qualified can only be installed, and after installation, the installation seal of the high efficiency filters will be tested again for leaks (using dust particle counter scanning) to achieve qualified installation.
④High efficiency filter installation leak detection after passing the second air blowing on the purified air conditioning system. The air blowing time is 24 hours, and then the commissioning procedure can be carried out.
5, clean room purification project test instruments, meters, tools for the preparation
① The instrumentation used in the commissioning should be debugged and calibrated before the commissioning (over the use of time also need to be re-calibrated). The instruments used include instruments for measuring air speed, air volume, temperature, relative humidity, differential pressure, noise, vibration, rpm, time, atmospheric pressure and cleanliness, etc.
② debugging equipment and tools used in the preparation. Such as: electrician's tools, plumber's tools, metalworker's tools, pliers' tools and ladders for climbing up and down. And ask the construction unit to cooperate with electricians, plumbers, metalworkers and pliers.
③ Preparation of drawings and record forms used for commissioning and testing work.
